KEA7000

Features

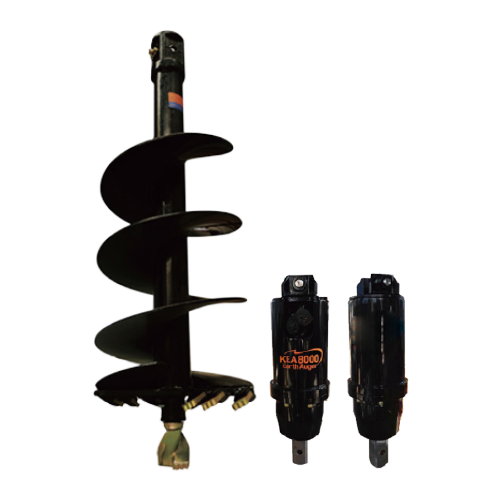

KD Earth Auger can be mounted to all common hydraulic excavators as well as mini excavators, like skid steer loader and backhoe loader. Auger drive can be applied for ground release drilling, ground, investigation, soldier pile installation, displacement augering, injection and soil improvement for foundations.

Specification

Name	Unit	KEA2000	KEA2500	KEA3000	KEA3500	KEA4500	KEA5000
Part No.	–	102000	102500	103000	103500	104500	105000
Carrier	T	1~2.5	1.5~3	2~3.5	2.5~4.5	3~5	4.5~7
Max Torque	N.m	1871	2432	2877	3614	4218	5056
Pressure	Bar	205	205	240	240	240	240
Oil Flow Range	l/min	23~53	30~61	30~61	30~68	38~76	38~76
Rotary Speed	rpm	40~92	40~82	40~81	32~72	32~64	29~58
Hydraulic Hose	Inch	1/2	1/2	1/2	1/2	1/2	1/2
Output Shaft	mm	©ª65	©ª65	©ª65	©ª65	©ª65	©ª75
Unit Weight	Kg	50	51	75	76	77	110
Unit Height	mm	595	595	700	700	700	780
Unit Max.Dia.	mm	200	200	244	244	244	269
Auger Series	mm	S4	S4	S4	S4	S4	S5
Auger Length	mm	1200	1200	1200	1200	1200	1500
Drill Dia. Range	mm	100~400	100~500	100~600	100~750	100~900	150~600

Name	Unit	KEA5500	KEA6000	KEA7000	KEA8000	KEA10000	KEA12000
Part No.	–	105500	106000	107000	108000	110000	112000
Carrier	T	5~7	6~8	7~10	8~12	10~13	13~17
Max Torque	N.m	5910	6150	6931	8048	10778	11976
Pressure	Bar	240	240	240	240	240	240
Oil Flow Range	l/min	45~83	45~106	61~121	61~136	70~136	80~140
Rotary Speed	rpm	28~50	34~80	37~72	29~64	26~45	22~43
Hydraulic Hose	Inch	1/2	3/4	3/4	3/4	3/4	1
Output Shaft	mm	©ª75	©ª75	©ª75	©ª75	©ª75	©ª75
Unit Weight	Kg	112	128	130	132	167	167
Unit Height	mm	780	850	850	850	930	930
Unit Max.Dia.	mm	269	269	269	269	290	290
Auger Series	mm	S5	S5	S5	S5	S6	S6
Auger Length	mm	1500	1500	1500	1500	1750	1750
Drill Dia. Range	mm	150?750	150~900	150~900	150~900	150~900	150~900

Name	Unit	KEA15000	KEA20000	KEA25000
Part No.	–	115000	120000	125000
Carrier	T	13~17	13~20	15~23
Max Torque	N.m	15046	19039	24949
Pressure	Bar	240	240	250
Oil Flow Range	l/min	80~151	80~170	90~180
Rotary Speed	rpm	20~39	17~34	16~30
Hydraulic Hose	Inch	1	1	1
Output Shaft	mm	©ª75	©ª75	Related products Quick View Attachment KD400S Add to Enquiry Quick View Attachment KD300S Add to Enquiry Quick View Attachment KD1200T Add to Enquiry Quick View Attachment KD800TP Add to Enquiry Quick View Attachment KD1500S Add to Enquiry Quick View Attachment KD500T Add to Enquiry Quick View Attachment KD1300S Add to Enquiry Quick View Attachment KD450S Add to Enquiry ABOUT JM Heavy Equipment providing many heavy equipment in GENUINE, OEM and AFTERMARKET parts. INFORMATION Address: Jmmart Spare Parts #5 Visayas Avenue, Bahay Toro, Quezon City, Philippines 1106 Tel: +63-917-622-7664 Email: sales@jmmartparts.com OFFICE HOURS Mon-Fri: 8:00-17:00 Sat: 8:00-14:00 Sun: Closed If you want to send email, please click here. Our experienced sales professionals answer within 48 hours. About Us Our Stores News FAQ Copyright 2024 © JMMART Search for: About Us Products News Contact Facebook Login Username or email address * Password * Remember me Lost your password?
