KDQ400H

Product Name

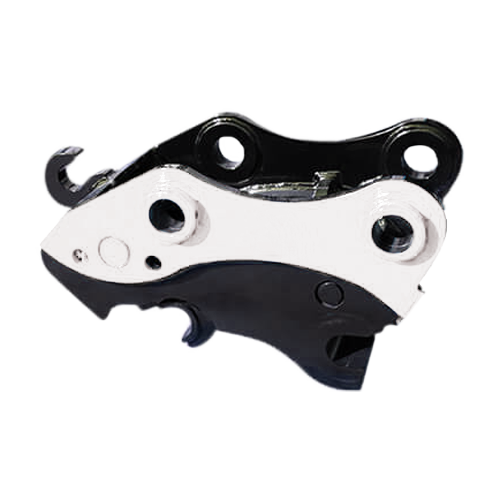

Quick Coupler(P Type)

Product Series
KDQ20P, KDQ30P, KDQ50P, KDQ150P, KDQ200P, KDQ300P, KDQ400P

Application
Suitable for most excavator.

Shipping
All country

SKU: 3036c655aceb Categories: Attachment, P Type, Quick Coupler

Description

Features

KD Quick Coupler changing buckets or special attachments in a few minutes, usually without tools and without leaving the operator¡¯s seat.

Special Features
1. Strong & stable compaction.
2. Compaction ground and slope.
3. Waterworks and sewer constructions
4. Reclamation works of the-gas-pipe and wire.
5. Wear-proof & one-body design.
6. Available for wide range of excavators.

Specification: P-TYPE

Model	Unit	KDQ20P	KDQ30P	KDQ50P	KDQ150P	KDQ200p	KDQ300p	KDQ400p
Length£¨C£©	mm	300-450	500-542	581-610	760	920-955	965-1100	1005-1150
Height£¨G£©	mm	246	307	310	388	492	574	558-610
Width£¨B£©	mm	175	258-263	270-280	353-436	449-483	543-568	606-663
Pins Center Distance£¨D£©	mm	80-150	230-270	290-360	380-420	460-480	473-540	550-620
Arm Width£¨A)	mm	80-140	155-170	180-200	232-315	306-340	375-411	416-469
Cylinder Stroke£¨E)	mm	95-200	200-300	300-350	340-440	420-510	460-560	600-650
Vertical Pins Center Distance	mm	159	195	195	220	275	300	360
Weight	kg	30	60-70	80-90	220-250	400-430	500-650	700-1T
Working Pressure	kg/cm©÷	40-380	40-380	40-380	40-380	40-380	40-380	40-380
Necessary Flow	L/min	44124	44124	44124	44124	44124	44124	44124
Suitable Excavator	ton	1.5-4	43928	43959	44093	17-23	23-30	33-45

The cab is equipped with an electric switch that is convenient for operator operation. It replaces the high cos t oil pressure by electric power. Each oil cylinder is equipped with check valve and a mechanical locking safety device to ensure the oil flow, ensuring coupler to regular work when the oil circuit on or cut off.

Specification: H-TYPE

Model	Unit	KDQ50H	KDQ150H	KDQ200H	KDQ300H	KDQ400H
Suitable Excavator	ton	5-8	9-19	17-23	23-30	33-45
Length£¨C£©	mm	581-650	800-830	970-1000	990-1200	1000-1300
Height£¨G£©	mm	310	388	492	574	558-610
Width£¨B£©	mm	270-280	353-436	449-483	543-568	606-663
Pins Center Distance£¨D£©	mm	290-360	380-420	460-480	473-540	550-620
Arm Width£¨A)	mm	180-200	232-315	306-340	375-411	416-469
Cylinder Stroke£¨E)	mm	300-350	340-440	420-510	460-560	600-650
Vertical Pins Center Distance	mm	195	220	275	300	360
Weight	kg	110	130-150	300-330	430-510	490-630
Working Pressure	kg/cm©÷	40-380	40-380	40-380	40-380	40-380
Necessary Flow	L/min	10-20	10-20	10-20	10-20	10-20

KDQ400H
