KDHSS160
Product Name

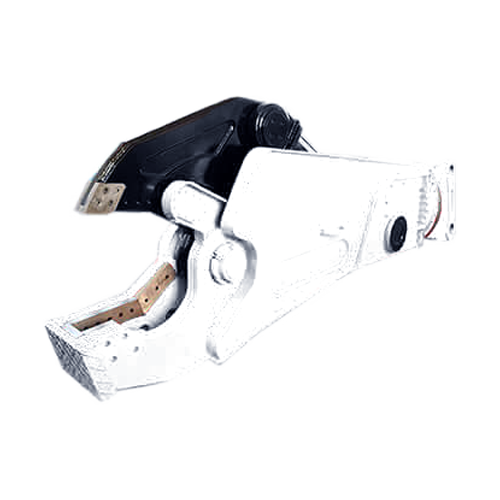

Hydraulic Scrap Shear
Product Series
KDHSS30, KDHSS50, KDHSS160, KDHSS230, KDHSS340, KDHSS550
Application
Suitable for most excavator.
Shipping
All country
Features
KD Hydraulic shear are excavator-mounted attachments to cut H-beams and any type of scraps.
Special Features
1. Strong & stable cutting force.
2. 360¢ª Rotating system (Free/Hydraulic).
3. High-wear resistance jaw plate.
4. High-wear resistance cutting blade
Specification
| Description | Unit | KDHSS30 | KDHSS50 | KDHSS160 | KDHSS230 | KDHSS340 | KDHSS550 |
|
Applicable Excavator
|
ton | 2.5~5 | 4.5~8 | 4.5~8 | 4.5~8 | 26~32 | 30~45 |
| lbs | 57,320~70,547 | 70,547~79,366 | 28,660~37,478 | 39,683~57,320 | 57,320~70,547 | 66,138~99,208 | |
| Operationg Weight | kg/lbs | 2,450/5,401 | 3,400/7,495 | 1,100/2,425 | 1,760/3,880 | 2,800/6,172 | 3,292/7,257 |
| Overall Length(L) | mm/inch | 2,174/85.5 | 2,760/ 108.6 | 1,835/72.2 | 2,075/81.6 | 2,435/95.8 | 2,760/108.6 |
| Jaw Opening | mm/inch | 580/22.8 | 710/27.9 | 490/19.2 | 520/20.4 | 600/23.6 | 600/23.6 |
| Force at Mid | ton/lbs | 270/595,248 | 280/617,294 | 88/194,006 | 127/279,987 | 197/434,310 | 205/451,947 |
| Operating Pressure | bar/psi | 320/4,641 | 320/4,641 | 280/4,061 | 300/4,351 | 320/4,641 | 320/4,641 |
| Setting Pressure | bar/psi | 160/2,321 | 160/2,321 | 160/2,321 | 160/2,321 | 160/2,321 | 160/2,321 |
| Rotation Type | Hydraulic | ||||||
?
