KDCRT200C

Product Name
Crusher- Concrete

Product Series
KDCRT160C, KDCRT200C, KDCRT230C, KDCRT450C

Application
Suitable for most excavator.

Shipping
All country

SKU: 7a16ea8298f4 Categories: Attachment, Concrete, Crusher

Description

Features

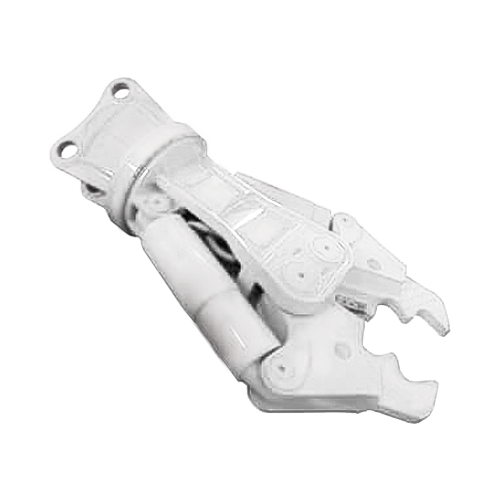

KD Hydraulic Crusher are excavator-mounted attachments to crush, demolish, break and handle old concrete.

Special Features
1. Strong & stable compaction.
2. Waterworks and sewer constructions.
3. 360¡Æ Rotating system.
4. High-wear resistance cutting blade(Hardox).

Specification

?	?	Scrap Steel				Concrete
Model	Unit	KDCRT160S	KDCRT200S	KDCRT230S	KDCRT450S	KDCRT160C	KDCRT200C	KDCRT230C	KDCRT450C
Dead-weight	kg	1413	2200	2977	4052	1345	2164	3060	4052
Max Opening	mm	540	500	660	801	650	950	1100	1200
Height	mm	2050	2380	2600	2700	1888	2374	2480	2700
Width	mm	1175	1370	1600	1700	1175	1360	1540	1700
The Active Length of Blade	mm	348	486	578	736	?	?	?	?
Rotation Mode	?	Ball	360¡ÆHydraulic			Ball	360¡ÆHydraulic
Pressure	bar	300	320	320	320	300	320	320	320
Root Crushing Force	ton	138*2	171*2	330*2	387*2	120*2	168*2	288*2	375*2
Middle Crushing Force	ton	80*2	102*2	189*2	218*2	66*2	78*2	125*2	174*2
Fore-end Crushing Force	ton	53*2	75*2	127*2	147*2	40*2	56*2	90*2	118*2
Suitable Excavator	ton	15-18	20-25	28-35	38-50	15-18	20-25	28-35	38-50

KDCRT200C
