KDCRD160

Product Name
Pulverizer

Product Series
KDCRD160, KDCRD200, KDCRD300, KDCRD450

Application
Suitable for most excavator.

Shipping
All country

SKU: 46f7ef6058f1 Categories: Attachment, KDCRD model, PULVERIZER

Description

Features

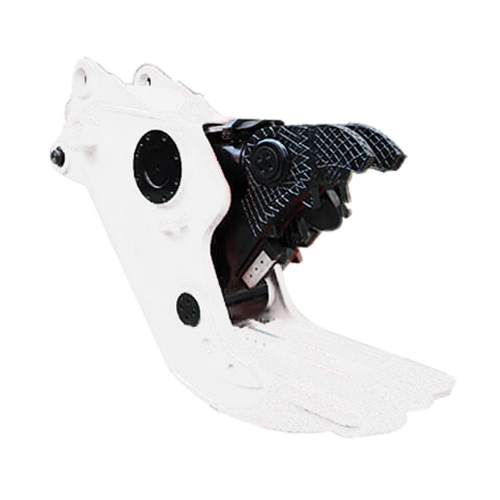

KD Hydraulic Pulverizer are excavator-mounted attachments for main demolition work and secondary crushing work to reduce any shrapnel.

Special Features
1. Strong & stable demolition power.
2. Automatic rotational positioning with hydraulic motor.
3. 360¡Æ Rotating system.
4. High-wear resistance material(Hardox).

Specification

DESCRIPTION	UNIT	KDCR160	KDCR200	KDCR300	KDCR450	KDCRD160	KDCRD200	KDCRD300	KDCRD450
Applicable Excavator	ton	14~20	18~26	26~32	38~48	13~17	18~26	26~32	30~40
Applicable Excavator	lbs	30,864~44,092	39,683~57,320	57,320~70,547	83,775~105,821	28,660~37,479	39,683~57,320	57,320~70,547	66,138~88,184
Operating Weight	kg/lbs	1,250/2,755	1,800/3,968	2,350/5,180	3,450/7,605	1,100/2,425	1,760/3,880	2,800/6,172	2,900/6,393
Overall Length(L)	mm/inch	1,580/62.2	1,806/71.1	1,990/78.3	2,336/91.9	1,795/70.6	2,020/79.5	2,430/95.6	2,745/108.0
Jaw Opening	mm/inch	800/31.4	980/38.5	1,100/43.3	1,300/51.1	770/30.3	900/35.4	1,000/39.3	1,000/39.3
Force at Mid	ton/lbs	70/154,323	120/264,554	195/429,901	270/595,248	85/187,392	108/238,099	175/385,808	175/385,808
Operating Pressure	bar/psi	280/4,061	300/4,351	320/4,641	320/4,641	280/4,061	300/4,351	320/4,641	320/4,641
Setting Pressure	bar/psi	?	?	?	?	160/2,321	160/2,321	160/2,321	160/2,321
Rotation Type	?	Fixed				Hydraulic

1. It is used for secondary crushing of steel and concrete and separation of steel and concrete.
2. It has the unique layout design of the jaw teeth, with double layer wear resistance protection, and is made of imported HARDOX sheet material.
3. The structure is optimized through load design to balance the opening size and crushing force.

KDCRD160
