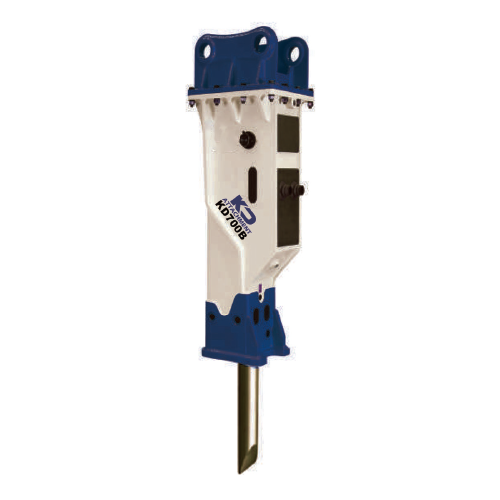

KD700B

Product Name
KD BREAKER TOP TYPE

Product Series
KD100B, KD200B, KD300B, KD400B, KD500B, KD700B, KD800B, KD800BP, KD1200B, KD1300B, KD1500B

Application
Suitable for most excavator.

Shipping
All country

SKU: 3b387ea92be3 Categories: Attachment, Box Type, Breaker

Description

Features
1. Noisier than the Slient type but less overall weight makes and it for easier positioning.
2. Easy-control and easy-position make it more convenient to excavation work Without side wight,reducing the rate of chisel breakage.
3. Parts exchanging quickly and Longer operation range for distance working More powerful cause of body verticality.

Specification

¡¡	¡¡	¡¡	KD100B	KD200B	KD300B	KD400B	KD450B	KD500B
Suitable Excavator	Min	ton	0.8	1.2	2.5	3.5	6	10
	Max	ton	2.5	3	4.5	7	9	17
	Suitable	ton	1	2	3	6	7	14
Tool (Moil Type)	Weight	Kg	4	6	9	20	25	59
Tool (Moil Type)	Diameter	mm	40	45	53	68	75	100
Operating Weight (Tool + M / C)		Kg	135	145	180	328	380	890
Operating Weight (Tool + M / C)		lb	298	320	397	683	838	1962
Main Body Weight		Kg	50	60	86	156	192	434
Operating Pressure (Breaker)		bar	80 ~ 100	80 ~ 100	90 ~ 120	95 ~ 130	100 ~ 140	150 ~ 170
Operating Pressure (Breaker)		psi	1,160 ~ 1,450	1,160 ~ 1,450	1,305 ~ 1,740	1,377 ~ 1,885	1,450 ~ 2,030	2,175 ~ 2,465
Setting Pressure? (Machine)		bar	150	150	150	170	180	200
Setting Pressure? (Machine)		psi	2175	2175	2175	2465	2610	2900
Impact Rate		bpm	800 ~ 1,400	700 ~ 1,200	600 ~ 1,100	450 ~ 1,000	475 ~ 950	450 ~ 780
Back Head Pressure (N2-Gas)		bar / psi	14 / 203	14 / 203	16 / 232	16 / 232	16 / 232	16 / 232
Required Oil Flow		l/min	15 ~ 30	20 ~ 35	25 ~ 50	34 ~ 60	40 ~ 80	85 ~ 110
Required Oil Flow		g/min	3.9 ~7.9	5.3 ~ 9.2	6.6 ~ 13.2	8.9 ~ 15.8	10.5 ~ 21.1	22.4 ~ 29

¡¡	¡¡	¡¡	KD700B	KD800B	KD800BP	KD1200B	KD1300B	KD1500B
Suitable Excavator	Min	ton	18	20	20	28	33	45
	Max	ton	28	30	30	40	50	55
	Suitable	ton	20	24	24	34	40	50
Tool (Moil Type)	Weight	Kg	125	129	129	193	233	311
Tool (Moil Type)	Diameter	mm	135	140	140	155	165	175
Operating Weight (Tool + M / C)		Kg	1700	1930	1930	2400	3050	4900
Operating Weight (Tool + M / C)		lb	3748	4255	4255	5291	6724	10803
Main Body Weight		Kg	682	812	812	1114	1480	1911
Operating Pressure (Breaker)		bar	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 190	160 ~ 200
Operating Pressure (Breaker)		psi	2,320 ~ 2,610	2,320 ~ 2,610	2,320 ~ 2,610	2,320 ~ 2,610	2,276 ~ 2,702	2,276 ~ 2,845
Setting Pressure? (Machine)		bar	210	210	210	220	240	240
Setting Pressure? (Machine)		psi	3045	3045	3045	3190	3480	3480
Impact Rate		bpm	350 ~ 680	280 ~ 550	280 ~ 550	280 ~ 550	300 ~ 500	250 ~ 500
Back Head Pressure (N2-Gas)		bar / psi	16 / 232	16 / 232	16 / 232	16 / 232	17 / 246	18 / 261
Required Oil Flow		l/min	120 ~ 150	120 ~ 150	120 ~ 150	160 ~ 240	210 ~ 320	250 ~ 380
Required Oil Flow		g/min	31.6 ~ 39.6	31.6 ~ 39.6	31.6 ~ 39.6	42.2 ~ 63.3	55.5 ~ 84.5	66 ~ 100

KD700B
