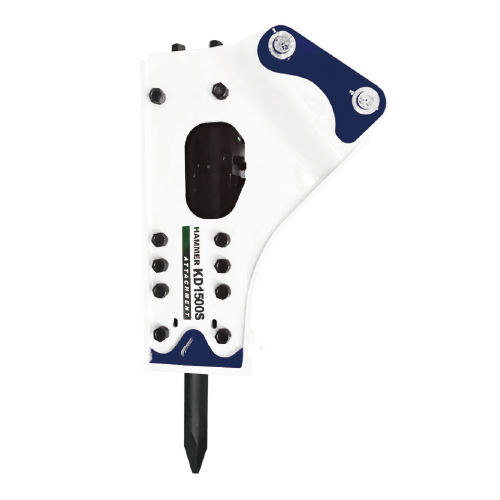

KD1500S

Product Name
KD BREAKER SIDE TYPE

Product Series
KD100S, KD200S, KD300S, KD400S, KD500S, KD700S, KD800S, KD800SP, KD1200S, KD1300S, KD1500S

Application
Suitable for most excavator.

Shipping
All country

SKU: 3590f97814f5 Categories: Attachment, Breaker, Side Type

Description

Features
1. Parts exchanging quickly. Flexible operation with wide vision Cose saving with higher efficiency.
2. Noisier than the Silent type but less overall weight makes and it for easier positioning suitable for mining work.
3. With best design, manufactured by least number of components. With fewer accessories, lower faults, easy to maintain.

Specification

			KD100S	KD200S	KD300S	KD400S	KD450S	KD500S
Suitable Excavator	Min	ton	0.8	1.2	2.5	3.5	6	10
	Max	ton	2.5	3	4.5	7	9	17
	Suitable	ton	1	2	3	6	7	14
Tool (Moil Type)	Weight	Kg	4	6	9	20	25	59
Tool (Moil Type)	Diameter	mm	40	45	53	68	75	100
Operating Weight (Tool + M / C)		Kg	72	92	150	275	295	795
Operating Weight (Tool + M / C)		lb	158	200	330	605	649	1749
Main Body Weight		Kg	50	60	86	156	192	434
Operating Pressure (Breaker)		bar	80 ~ 100	80 ~ 100	90 ~ 120	95 ~ 130	100 ~ 140	150 ~ 170
Operating Pressure (Breaker)		psi	1,160 ~ 1,450	1,160 ~ 1,450	1,305 ~ 1,740	1,377 ~ 1,885	1,450 ~ 2,030	2,175 ~ 2,465
Setting Pressure (Machine)		bar	150	150	150	170	180	200
Setting Pressure (Machine)		psi	2175	2175	2175	2465	2610	2900
Impact Rate		bpm	800 ~ 1,400	700 ~ 1,200	600 ~ 1,100	450 ~ 1,000	475 ~ 950	450 ~ 780
Back Head Pressure (N2-Gas)		bar / psi	14 / 203	14 / 203	16 / 232	16 / 232	16 / 232	16 / 232
Required Oil Flow		l/min	15 ~ 30	20 ~ 35	25 ~ 50	34 ~ 60	40 ~ 80	85 ~ 110
Required Oil Flow		g/min	3.9 ~7.9	5.3 ~ 9.2	6.6 ~ 13.2	8.9 ~ 15.8	10.5 ~ 21.1	22.4 ~ 29

			KD700S	KD800S	KD800SP	KD1200S	KD1300S	KD1500S
Suitable Excavator	Min	ton	18	20	20	28	33	45
	Max	ton	28	30	30	40	50	55
	Suitable	ton	20	24	24	34	40	50
Tool (Moil Type)	Weight	Kg	125	129	129	193	233	311
Tool (Moil Type)	Diameter	mm	135	140	140	155	165	175
Operating Weight (Tool + M / C)		Kg	1450	1780	1780	2700	2995	4100
Operating Weight (Tool + M / C)		lb	3190	3916	3916	5940	6589	9020
Main Body Weight		Kg	682	812	812	1114	1480	1911
Operating Pressure (Breaker)		bar	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 180	160 ~ 190	160 ~ 200
Operating Pressure (Breaker)		psi	2,320 ~ 2,610	2,320 ~ 2,610	2,320 ~ 2,610	2,320 ~ 2,610	2,276 ~ 2,702	2,276 ~ 2,845
Setting Pressure ? (Machine)		bar	210	210	210	220	240	240
Setting Pressure ? (Machine)		psi	3045	3045	3045	3190	3480	3480
Impact Rate		bpm	350 ~ 680	280 ~ 550	280 ~ 550	280 ~ 550	300 ~ 500	250 ~ 500
Back Head Pressure (N2-Gas)		bar / psi	16 / 232	16 / 232	16 / 232	16 / 232	17 / 246	18 / 261
Required Oil Flow		l/min	120 ~ 150	120 ~ 150	120 ~ 150	160 ~ 240	210 ~ 320	250 ~ 380
Required Oil Flow		g/min	31.6 ~ 39.6	31.6 ~ 39.6	31.6 ~ 39.6	42.2 ~ 63.3	55.5 ~ 84.5	66 ~ 100

KD1500S
